LNG 175 Liter Cryogenic Dewar Cylinder 1.4MPa Liquid Nitrogen Tank Pressure Building

  • 1
  • 2

Brand Name : MKIMM

Model Number : MKIMM

Certification : ISO9001

Place of Origin : henan

MOQ : 1

Price : bargain

Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on

Supply Ability : 25 every month

Delivery Time : 15days

Packaging Details : wooden box

Max Working Pressure(MPa) : 1.4 MPa

Machinery Test Report : Provided

Core Components : Pressure vessel

Dimension(L*W*H) : 510*510*1557mm

Key Selling Points : Competitive Price

Open Pressure of Safety Valve : 1.59Mpa

Body Material : Stainless Steel

Capacity : 175L

Contact Now

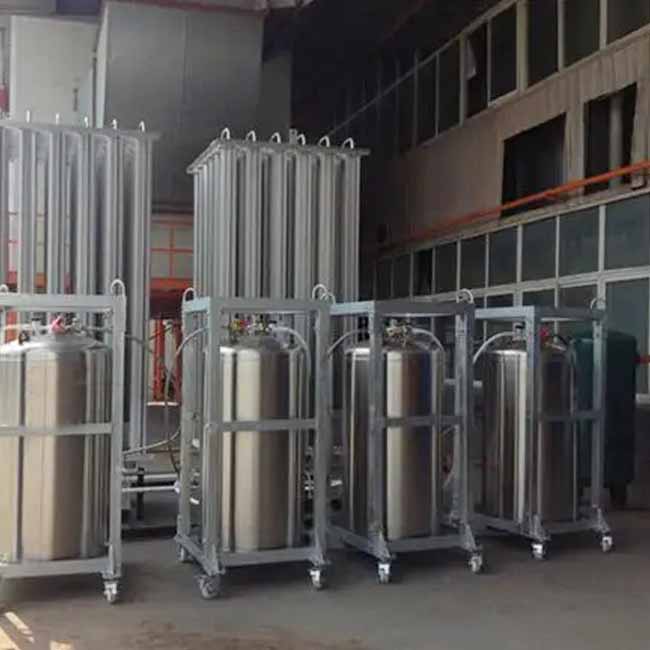

175 L LNG Cryogenic Gas Cylinder Liquid Nitrogen Cylinder Dewar

Description

The self-pressurization speed of the cryogenic dewar is faster, and the high-pressure supply can achieve continuous stability. Using a new internal and external synchronous heating technology, intelligent vacuuming. The Dewar bottle adopts a unique filling design, the flash steam is greatly reduced, and the filling and emptying loss and filling rate are greatly improved.

Specifications

Specifications Product model
450-175-1.4 450-175-2.0
volume(L) 175 175
Effective volume(L) 157.5 157.5
Size(D×H)mm Φ508×1496 Φ508×1500
Working Pressure(MPa) 1.4 2.0
Set pressure of main safety value(MPa) 1.59 2.41
Set pressure of bursting discset(MPa) 2.6 3.6
Evaporation rate (Liquid nitrogen) ≤2.1% ≤2.1%
Empty weight(kg) 117 135
Maximum filling weight:Liquid oxygen(kg) 179 179
Maximum filling weight:Liquid nitrogen(kg) 127 127
Maximum filling weight:Liquid argon(kg) 220 220
Maximum filling weight:LNG(kg) 67 ---
Level gauge Float type,Capacitance
The base style Stainless steel-rubber bas

LNG 175 Liter Cryogenic Dewar Cylinder 1.4MPa Liquid Nitrogen Tank Pressure Building

Features:

1 For liquid argon/liquid oxygen/liquid nitrogen/liquid carbon dioxide /LNG storage and transportation.

2 Built-in gasifier, providing 10m3/h continuous gas supply.

3 adopt international standard joint, all valves are imported brands. Also can be customized according to customer.

Damping ring design to ensure transportation safety.

Widely used in chemical/machinery/shipbuilding/hospital/electronics/medical/materials/energy/scientific research and other industries.

LNG 175 Liter Cryogenic Dewar Cylinder 1.4MPa Liquid Nitrogen Tank Pressure Building
